Performance Features

1) Portable and lightweight, easy to use, powered by a rechargeable lithium battery, can be operated by one person, simple to use.
2) Digital design, software control, stable and reliable performance.
3) Measured information is provided to the operator in three ways: numerical value, rising and falling grating length, and sound intensity, making the testing process easy and convenient.
4) Large LCD screen with Chinese display, easy to understand and learn.
5) The receiver has functions such as low power alarm and automatic shutdown protection.
6) The coupling method can be used to find the path while the circuit is live.
7) The receiver can be equipped with identification receiving coupling clamps for pipeline identification.
8) The transmitter has constant power output and automatic matching to ensure that the machine operates in the best condition. Built-in ohmmeter function automatically measures the loop impedance of the cable to ground and between phases, which can help determine the nature of the fault.
9) Backlight function, suitable for nighttime operation.

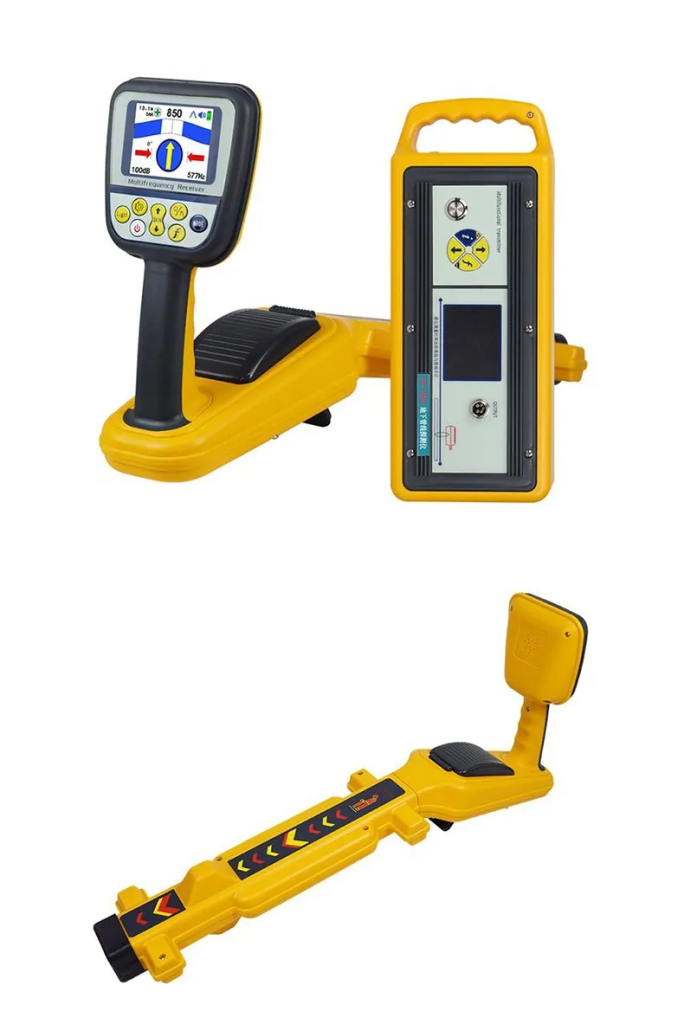

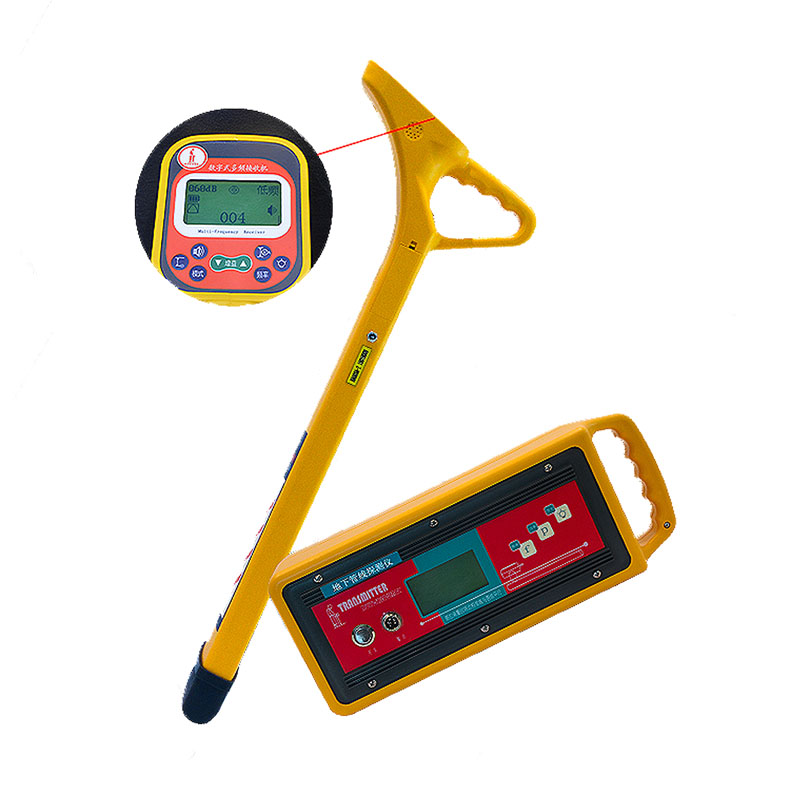

Transmitter

1) Output Signal: Outputs sinusoidal AC signals at four frequencies: low frequency, intermediate frequency, high frequency, and radio frequency.

2) Output Power: Constant power output, with three levels: low, medium, and high (maximum not less than 6 watts).

3) Output Mode: Direct connection, coupling, and inductive connection.

4) Impedance Display: Within 99,999 ohms.

5) Load Matching: 110,000 ohms.

6) Display Interface: Large-screen LCD with Chinese characters and graphics, backlit.

7) Power Supply: Six standard size 1.2V rechargeable batteries, 500 charge/discharge cycles.

8) Standby Time: Greater than 8 hours, with battery level indicator.

9) Overheat and Overcurrent Protection: Automatic protection.

10) Operating Temperature: -20°C to 50°C

11) Dimensions: 400mm x 160mm x 140mm

12) Weight: 3.6 kg

Receiver

1) Receiving Frequency: Receives five different sinusoidal AC signals: low frequency, intermediate frequency, high frequency, radio frequency, and 50Hz.

2) Receiving Modes: Peak method (horizontal coil), trough method (vertical coil), and external device method (coupling clamp).

3) Signal Interface: Simultaneously displays signal strength using three interfaces: digital value, grating length, and sound tempo.

4) Display Interface: Large LCD screen with Chinese and graphic display, backlit.

5) Gain Control: Manually adjustable, dynamic range 000-100dB.

6) Detection Length: With a direct cable, maximum 15km. With a coupled cable, a single coupling can measure 3km, with multiple couplings extending to infinity. With an inductive cable, a single induction can measure 300m, with multiple inductions extending to infinity.

7) Depth Measurement: Direct reading depth, range 0.00-250cm. 80% method depth measurement, range 0.00-250cm (induction) / 500cm (direct connection).

8) Current Measurement: Direct reading current, range 0.00-999mA.

9) Detection Accuracy: 5% of burial depth.

10) Power Supply: 6 standard AA 1.2V rechargeable batteries, 500 charge/discharge cycles.

11) Standby Time: Greater than 12 hours, with battery level indicator.

12) Overheat and Overcurrent Protection: Automatic protection.

13) Operating Temperature: -10°C to 40°C.

14) Dimensions: 650mm x 110mm x 230mm

15) Weight: 2.3Kg

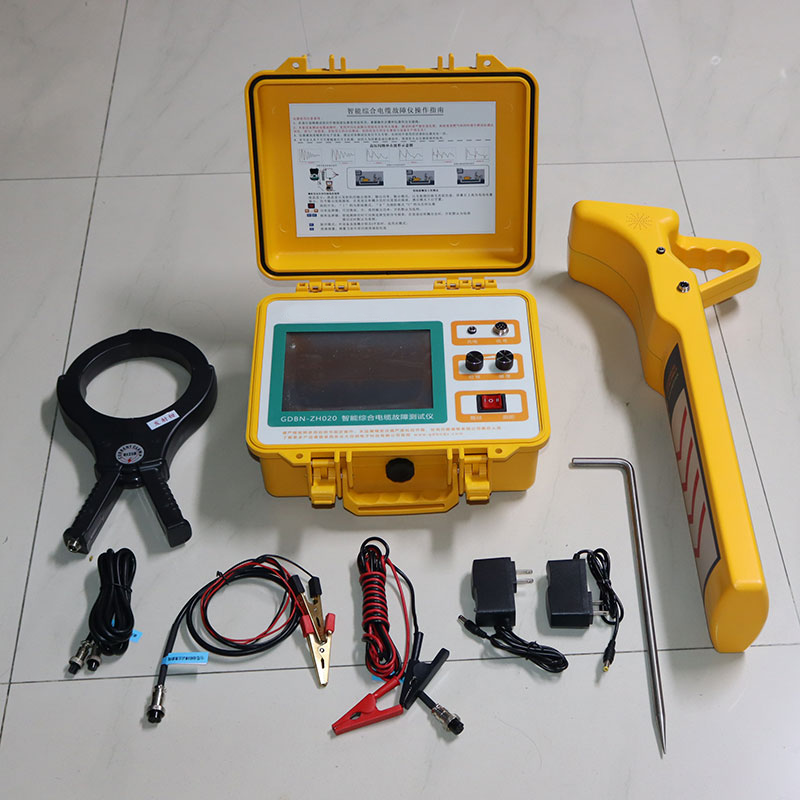

Equipment configuration:

one transmitter, one receiver, one signal cable, one charger, one coupling clamp, one set of connecting cables; one instruction manual; one warranty card, one packing list and one factory inspection report.
