Features:

1. A domestically unique integrated machine for live/off-power, quantitative/qualitative identification. Combining live and non-live identification functions, it is suitable for identifying and judging both live and off-powered cables. Operation is extremely simple and convenient.
2. A domestically unique DC-powered identification instrument, convenient for field use.
3. Powered by a lithium battery, the instrument can work continuously for 5-10 hours, suitable for passive field use.
4. Unlike conventional identification instruments, this cable identifier uses the latest PSK communication technology. At the transmitting end, a microcontroller encodes the transmitted signal and drives the power to couple the signal onto the cable. The microcontroller in the receiver decodes and identifies the received phase-encoded signal. Based on the uniqueness of the signal phase characteristics on the target cable, it identifies the target cable from a large bundle of cables. Therefore, its performance is reliable, accurately identifying even ultra-long cables, and suitable for various types of high and low voltage power cables.
5. Reliable protection circuit, unaffected by output short circuits. 6. Equipped with a 4.3-inch OLED color LCD display.
6. Test length: not less than 5KM.

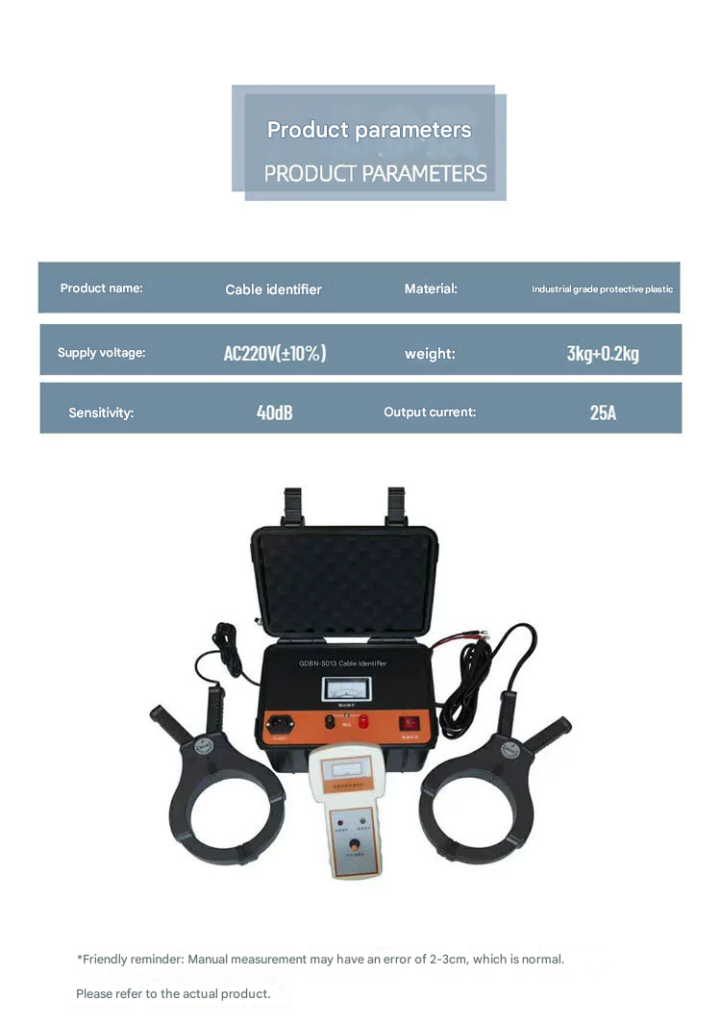

echnical Parameters

1. Maximum Pulse Peak Output Current: 40A
2. Pulse Repetition Frequency: 1 time/2 seconds
3. Transmitter Clamp Closure: 4125mm
4. Power Supply Voltage: AC220V (+10%), Charging Voltage: DC12V
5. Weight: 3kg
   Receiver:
6. Receiver Sensitivity: 40dB
7. Receiver Clamp Closure: 4125mm
8. Power Supply: Two 1.5V AA batteries (optional 3.7V rechargeable lithium battery)
9. Weight: 0.2kg

Equipment Configuration:

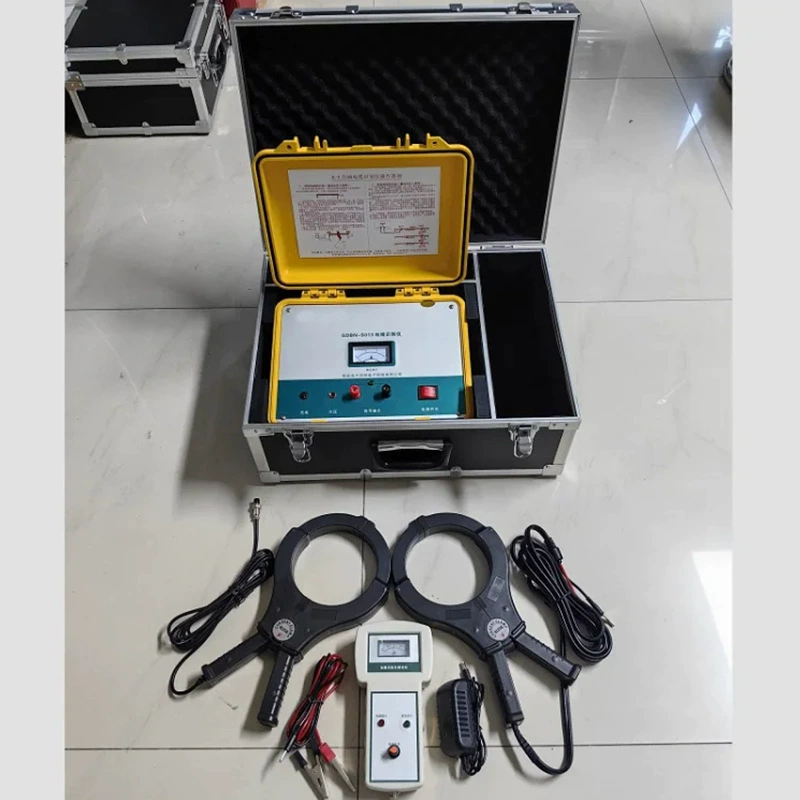

One main unit, one receiver, two connecting cables, one receiver clamp, one transmitter clamp, one power cord, one charger, one instruction manual; warranty card, packing list, and factory inspection report.
